EXT Racing Shox

Italiensk demperteknologi i en annen liga enn alt annet

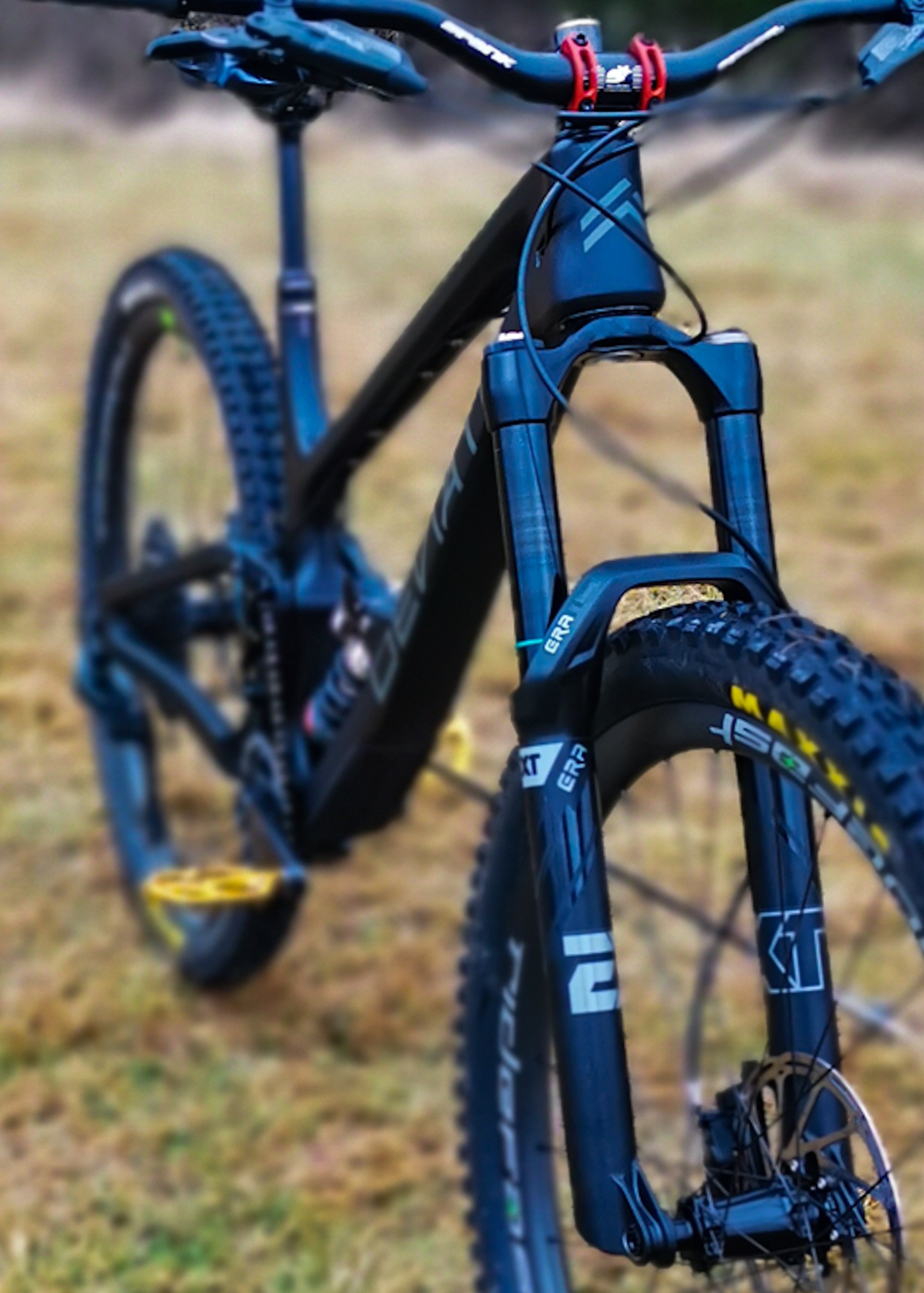

EXT Era V2

EXT Era V2

Pris: kr 16 950,-

(veil pris 18 999,-).

  • HS3, Hybrid coil and air spring: with 2 adjustable positive air chambers and high volume negative chamber

    New Crown design: forged AL 7050 T6 to substantially increase stiffness

    High volume Cartridge with Ø22 mm piston, engineered circuit to separate bump and rebound oil flow

    HDRV unique compression valve system Ø24 mm piston

    IFP reservoir Ø24 mm piston

    Dropout 15QR Boost Torque Cap® compatible (15×110 mm)

    3 way adjustable, Low and High speed Bump and Rebound

    Main strut low friction system: new DU bushing material from our WRC technology combined with dedicated EXT oil

    Cartridge and Air spring low friction System: innovative floating shaft guide combined with the EXT proprietary coating and superfinish chrome shaft.

Weight: 2275 g (29” 170 mm with uncut steer tube, axle and lube)

AVAILABLE STROKES

– 130 mm

– 140 mm

– 150 mm

– 160 mm

– 170 mm

AVAILABLE WHEEL SIZE/OFFSET

– 29 inch

– Offset: 44 mm

EXT Storia lok V3

EXT Storia

Pris: kr 10 250,- inkl 2 x fjær og custom tune

(veil pris 11 499,-).

  • – Metric and Imperial sizing – Standard or Trunnion mount

    – 4 way adjustable (LSC-HSC-LSR-Lok proprietary system)

    – High flow Ø29 mm main piston

    – Ø24 mm valve piston

    – Ø14 mm shaft

    – New Lok Technology – Progressive opening – Silent working

    – Engineered rebound circuit to separate bump and rebound oil flow

    – Ultra low-friction coating

    – Factory tuned HBC technology

    – Very low reservoir pressure for maximum sensitivity (55 PSI)

    – Full custom hydraulic setup available

    – No cavitation

    – Very low hysteresis for high dynamic response

    – High turbulent flow for very low temperature depending

    – Low friction Energize seal

    – Thinner bottom-out bumper

    – New rebound knob for easy spring swap

Weight: 636 gr. (200×57 mm. Standard mount – 375 lbs. spring)

AVAILABLE LENGHTS / STROKE

IMPERIAL

190 / 51 mm

200 / 57 mm

216 / 63.5 mm

222 / 67 mm

METRIC STANDARD

210 / 50 mm

210 / 52.5 mm

210 / 55 mm

230 / 57.5mm

230 / 60 mm

230 / 62.5 mm

230 / 65 mm

250 / 67.5 mm

250 / 70 mm

250 / 72.5 mm

250 / 75 mm

METRIC TRUNNION

185 / 50 mm

185 / 52.5 mm

185 / 55 mm

205 / 57.5 mm

205 / 60 mm

205 / 62.5 mm

205 / 65 mm

225 / 67.5 mm

225 / 70 mm

225 / 72.5 mm

225 / 75 mm
