Tekniske detaljer Deviate Highlander 150

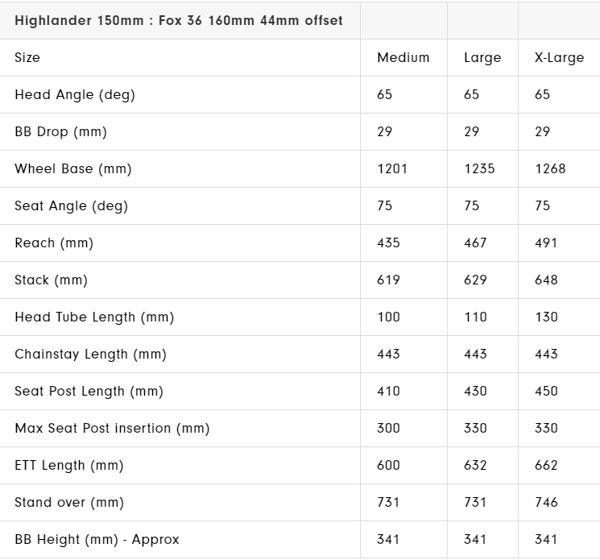

Geometry chart Deviate Highlander 150
Kan leveres med angleset som gir 1.0 grad slakere styrevinkel
Sizing Deviate Highlander 150

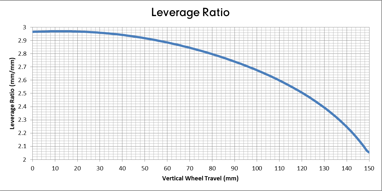

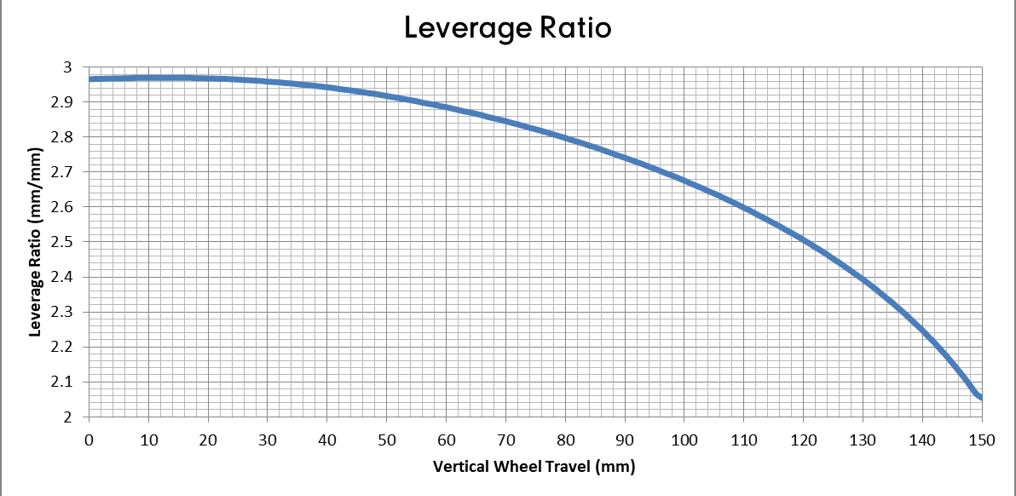

Leverage ratio Deviate Highlander 150
Anti rise anti squat Deviate Highlander 150

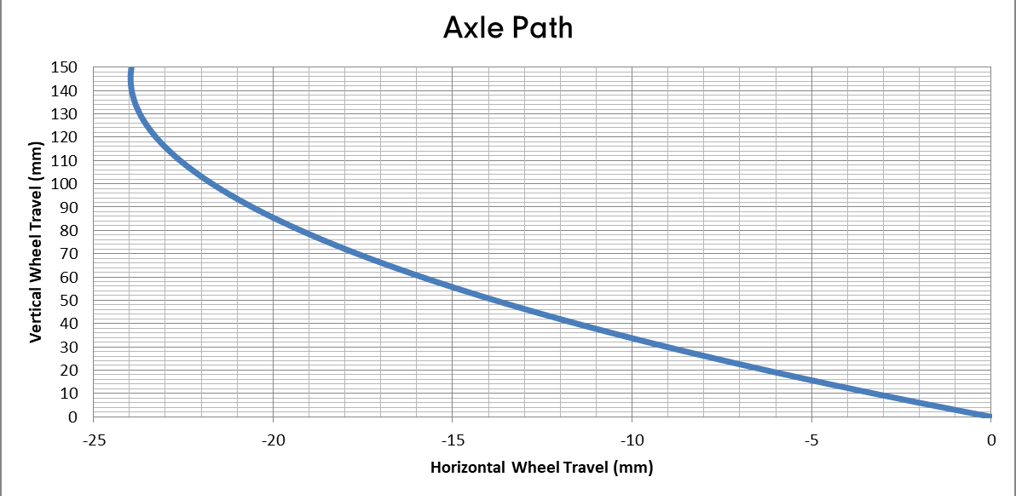

Axle path Deviate Highlander 150

Spec Deviate Highlander 150

Rear Wheel: 29”, Boost: 148mm * 12mm

Fork Compatibility: 29” 160mm with 44/42mm offset

Bottom Bracket: 73mm BSA Threaded

Headset: ZS44/ZS56

Cranks: Minimum Q-factor of 168mm

Chainline: 52mm

Chain length: 126 links (widely available, no need to join chains)

Max Chainring Size: 36t

Shock Size: Metric 210*55mm

Shock Hardware: Front: 30*8mm | Rear: bushing

Brake Mount: Post Mount 180mm

Seatpost Compatibility: Internal dropper routing with internal cable routing. 31.6”, Max Insertion Depth: Medium:- 300mm, Large:- 330mm (that's a 200mm Reverb at full insertion even on the M)

Seat Collar: 34.9mm

Chain: 126 link chain - commonly available with no need to join chains.

Tyre clearance: 2.8”
