Tekniske detaljer Kavenz VHP16

Geometry chart Kavenz

Eksempel Kavenz VHP16:

  • Reach: 480 (tredje fra venstre)

  • Seat tube: 450mm

  • Head tube: 110mm

  • Top tube: 618mm (tredje fra venstre)

  • Front center: 824 (tredje fra venstre)

  • Wheel base: 1249 (front center + chain stay)

    Du kan også velge om du vil ha 29" + 29" eller 29" + 27,5"

    Ta kontakt om du trenger hjelp til geometrivalg.

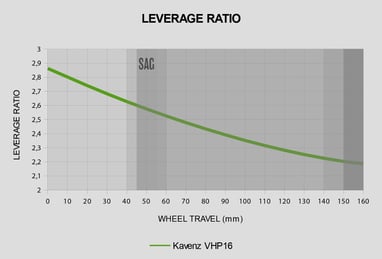

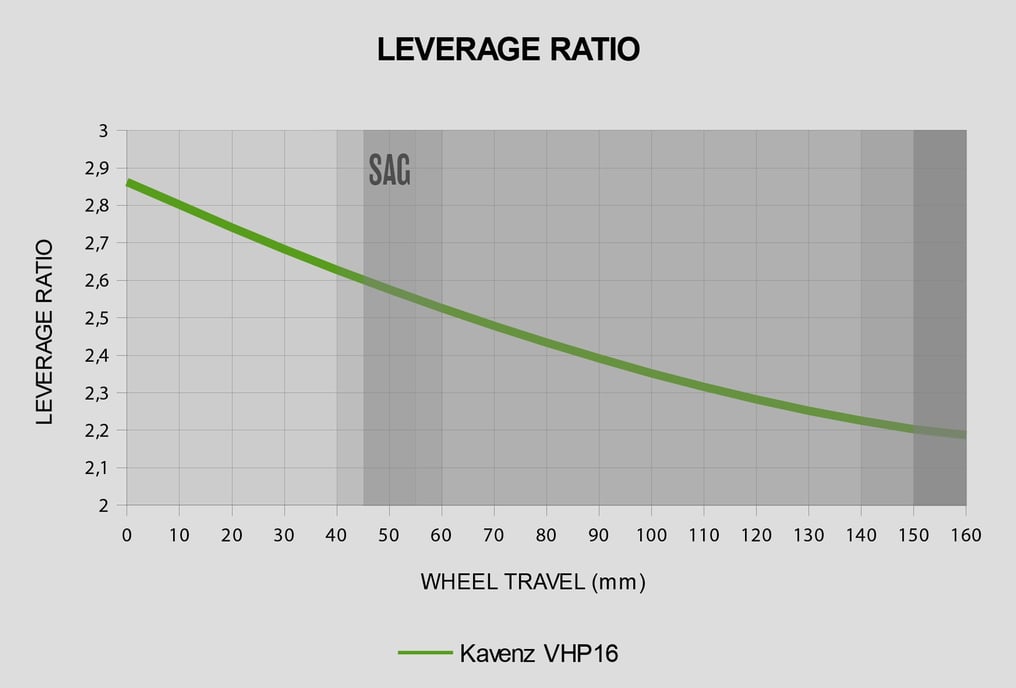

Leverage ratio Kavenz

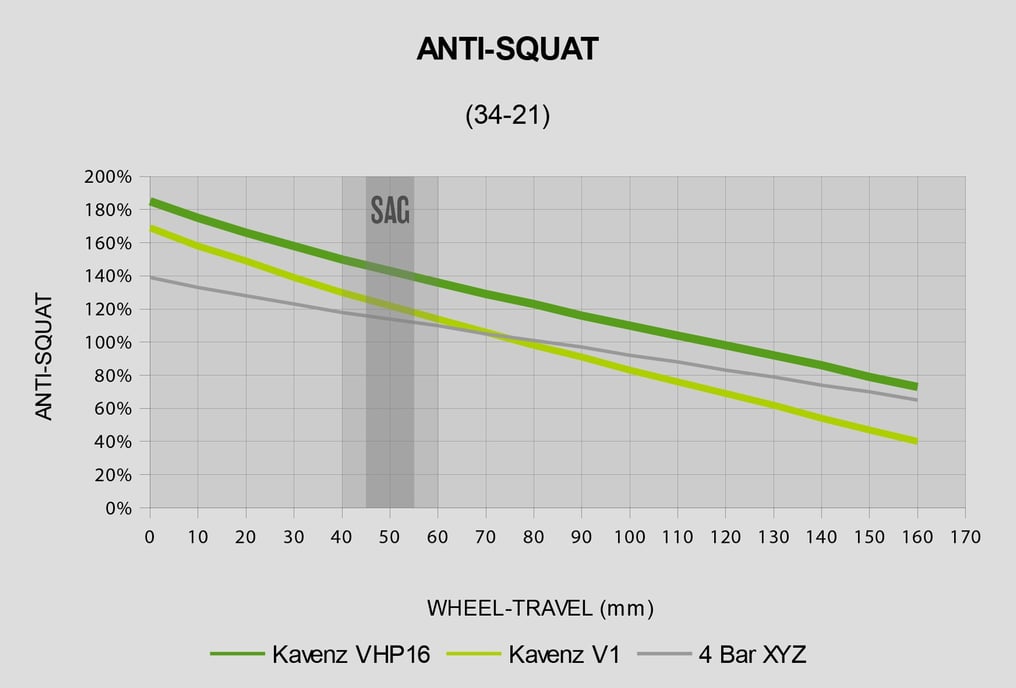

Anti squat Kavenz

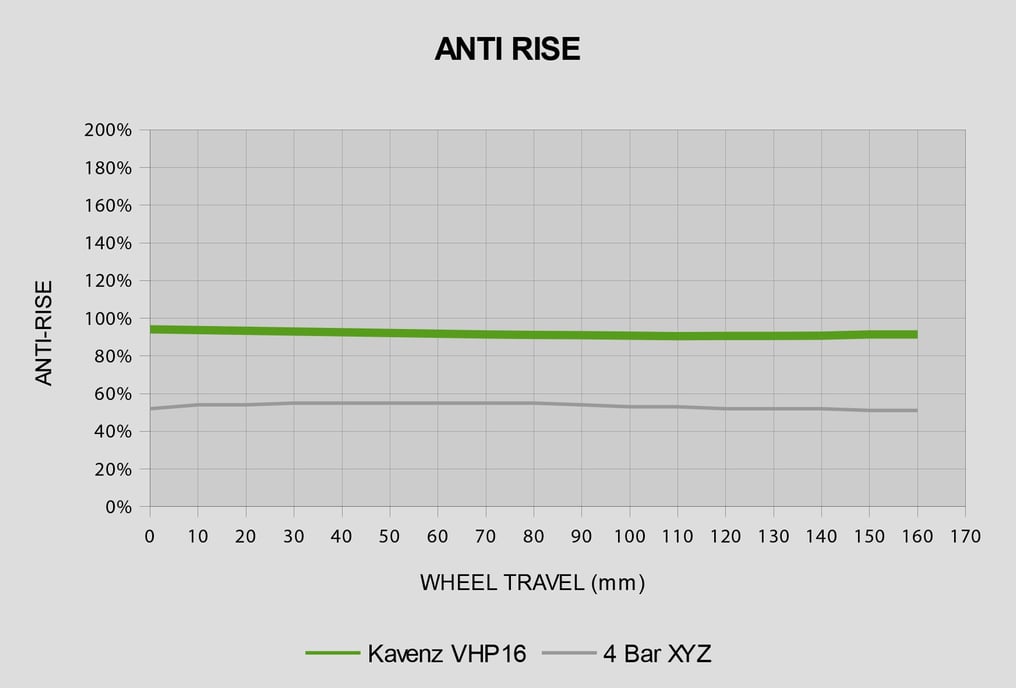

Anti rise Kavenz

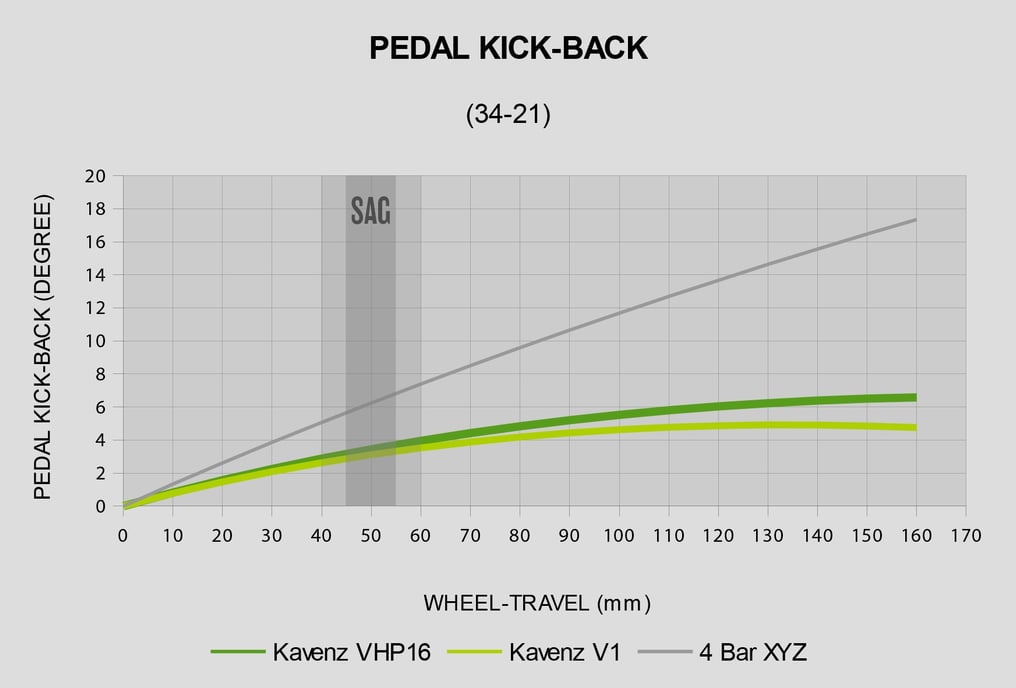

Pedal kick back Kavenz

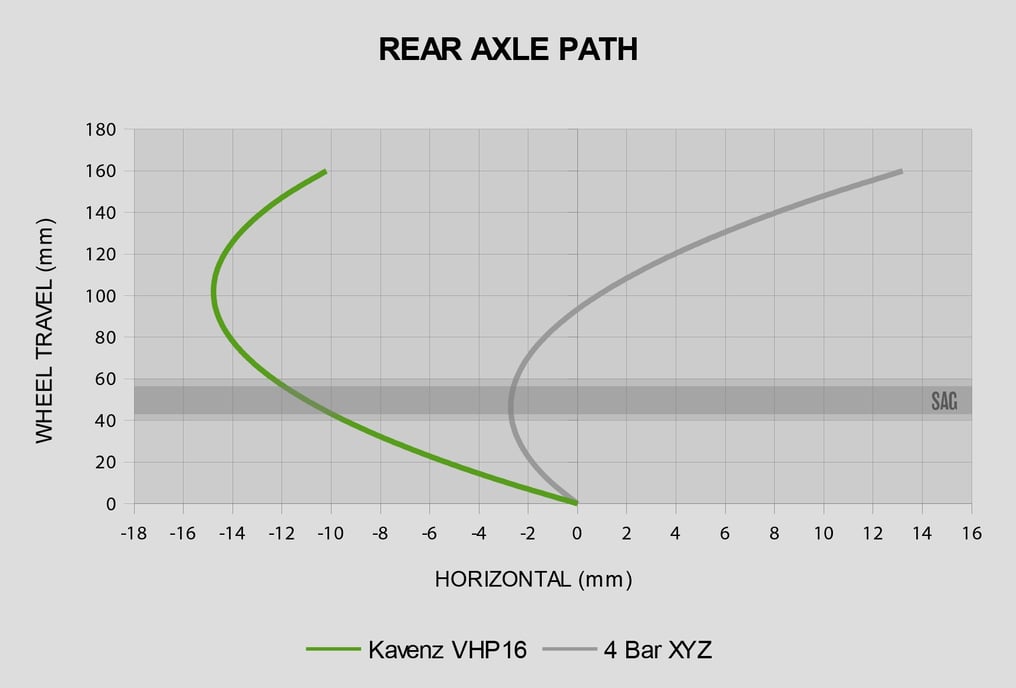

Axle path Kavenz

Specs Kavenz VHP16

Travel: 160mm

Shock: Trunnion 205x65 Mounting hardware: 22x8mm

Fork: 160-180 Crown to Axle 567-591mm (Geometry is designed with 581 ATC)

Headtube: ZS 44/56 (110mm or 125mm)

Headset: ZS44/28.6 | ZS56/40
(for tapered forks)

Rear-Brake: IS 2000 Rear-disc diameter 203 mm (PM 203 Adapter Included)

Rear Axle: X12 - 148mm (BOOST)

Bottom Bracket: 73 mm BSA (ISCG 05 Adapter Optional)

Chainguide: Top Guide for the Idler Pulley is included (Lower Guide and Crash Plate optional)

Chainline: 49 mm for performance in climbing gears or
52 mm for DH gear priority and BOOST

Tires: 29“ x 2,6“ (tire clearance 81 mm) or
27,5“ rear wheel options with different shock mount

Seattube: 31.6 mm inside / 35 mm outside
Length options: 420mm (M) / 450mm (L) / 480mm (XL)

Seatpost: 31.6 mm with internal seatpost cable routing
MAX insert: (420) 280mm / (450) 310mm / (480) 340mm
MIN insert: 100mm

Bottle: 750 ml
(sideload bottle cage only)

Idler Pulley: 14T N/WBearings15x28x7 Max Type (S6902 LLU MAX)
(one oversized bearing type throughout the whole frame)

Weight: 3,28 kg
(RAW incl. hardware, w/o shock, Reach 460, Seat Tube 420)

Material: Frame - EN AW 7020 T6 heat-treated after welding Axles
Titanium Grade 5 Bearings
Stainless Steel

Chain: 34T Chainring requires 120 links and a 32T Chainring requires 118 links in combination with a 10-50 cassette
