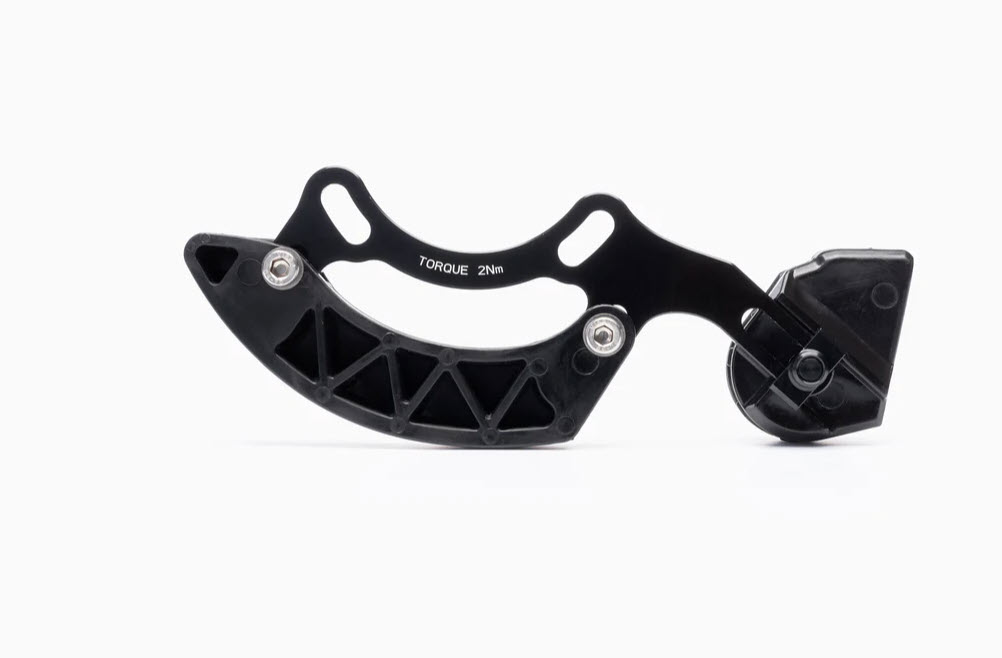

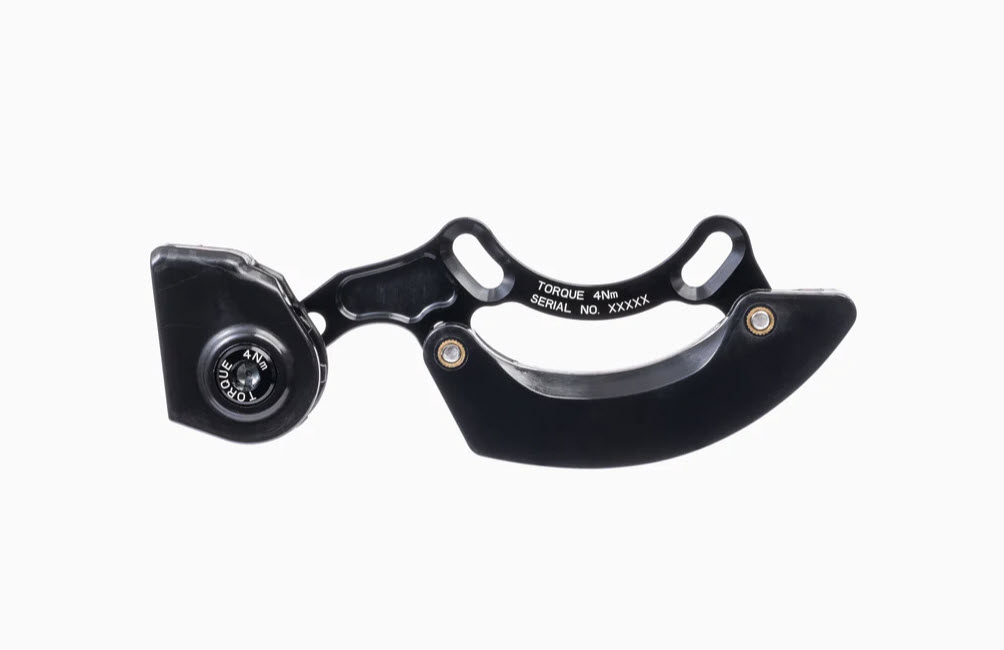

Deviate kjedefører

Om varen ikke er på lager så ta kontakt. De fleste varer kan skaffes på 2-4 uker.

Kjedefører spesielt designet til Deviate-rammer.

Ikke testet spesifikt mot andre rammer, men skal også fungere fint til flere rammetyper.

Key Features

• Adjustability : Works with chain ring sizes from 30T to 36T

• Durability : Grease port is fitted to protect the bearings (as seen on Deviate’s Highlander and Claymore frames)

• Reliability : Designed with long rides & racing in mind. Reduce maintenance with built in grease ports, twin-lip wiper seals and pre-mounted bash guard

• Efficiency : Jockey-wheel system improves guide efficiency by reducing the risk of the chain seizing

• Noise-reduction : Soft rubber included to reduce noise

• Drag-reduction : The grease ports not only provide longevity but also reduce drag on the ups

• Protection : Comes complete with pre-mounted and adjustable bash guard

• Compatibility : ISCG 05 lower only chain guide. Works with a range of suspension platforms (not just high pivot) and oval chain rings

• Part Replacement : No need to replace the entire guide, the bash guard and jockey wheel can be easily replaced

• Installation : Install without removing your crank

Specs

• Chainline : 52mm (55mm with 3mm spacers and longer screws)

• Material : Injection moulded nylon & CNC-machined Aluminum backplate

• Capacity : 30-36T

• Weight : 109g

• Mount : ISCG 05 lower only

Installation:

The installation is streamlined thanks to the adjustable design, relying on just two bolts to attach and no need to remove cranks:

1. Using a 6mm Allen key remove the Chain Guide Bolt from the Chain Guide. Skip this step if you are able to unlink and re-link your chain or are yet to link a new chain


2. Remove the Jockey-wheel from the Chain Guide housing, place the Chain Guide over the chain (as shown) and then re-insert the Jockey-wheel into the Chain Guide housing. If you are able to unlink and re-link your chain or are yet to link a new chain, pass the chain through the Chain Guide, above the jockey-wheel, and (re)link your chain


3. Using a 6mm Allen key, re-insert the Chain Guide Bolt into the Chain Guide now that the chain runs through the guide ensuring the Jockey-wheel is aligned for the  bolt to pass through. Whilst doing this, place the bash guard plate into the desired position (see step 4) and thread the Chain Guide. Bolt into the female thread of the T-nut

4. Set the Bash Guard by sliding it left or right until it is in the desired position and tighten the Chain Guide Bolt to 4nm of torque by threading it into the T-nut

5. Align the Bash Guard with the Bash Guard mounting points on the bike and move the Bash Guard clockwise or anti-clockwise to find the optimum position. Using a 4mm Allen key, thread the Chain Guide CSK Bolts into the female Bash Guard threads on the frame

6. Test and tweak the Bash Guard and Chain Guide positioning using the sliders on the Bash Guard until you’ve found the optimum setting

FAQ's

• Can I run an oval or elliptical chainring with my chainguide?

  • Yes if inside the 30-36T chain ring

• Do I still need a chainguide if Im running a narrow-wide ring and clutch derailleur?

  • We would still recommend running a chain guide/bash guard for maximum protection and chain tensioning
