Tekniske detaljer Deviate Claymore

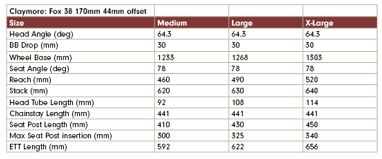

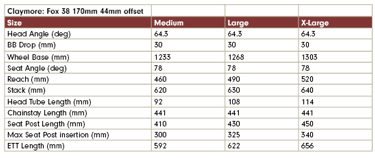

Deviate Claymore geometry

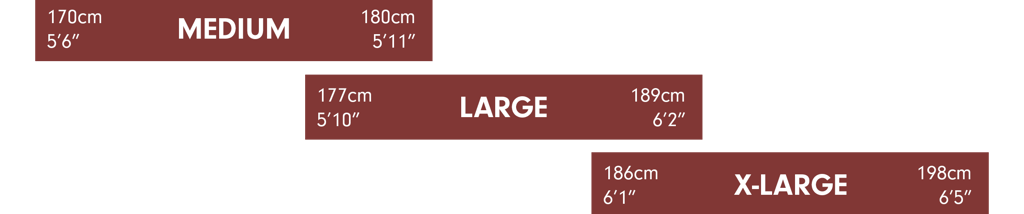

Deviate Claymore frame sizing

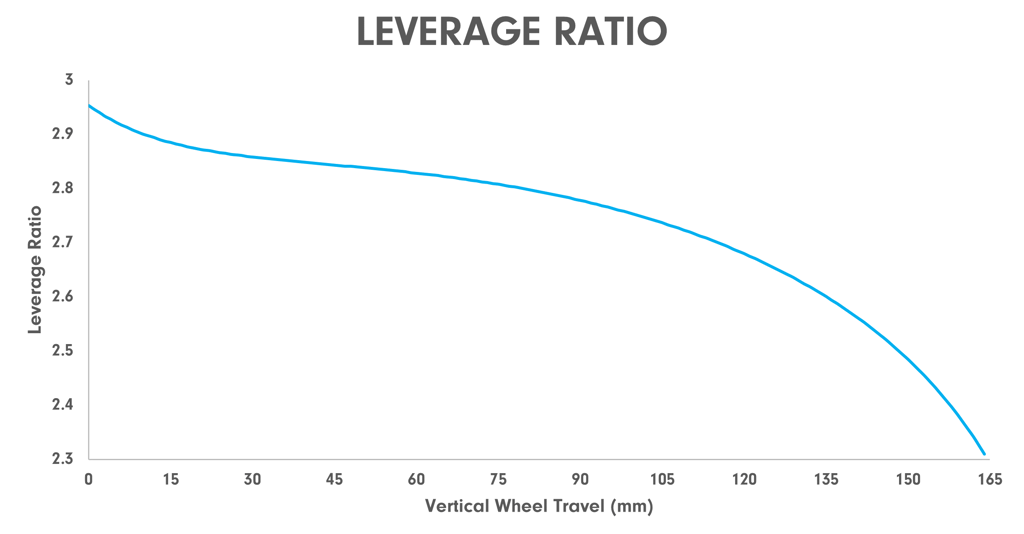

Deviate Claymore leverage ratio

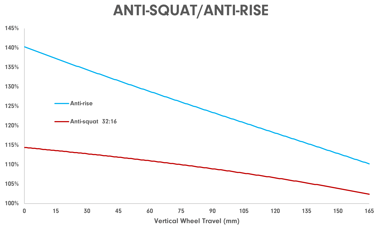

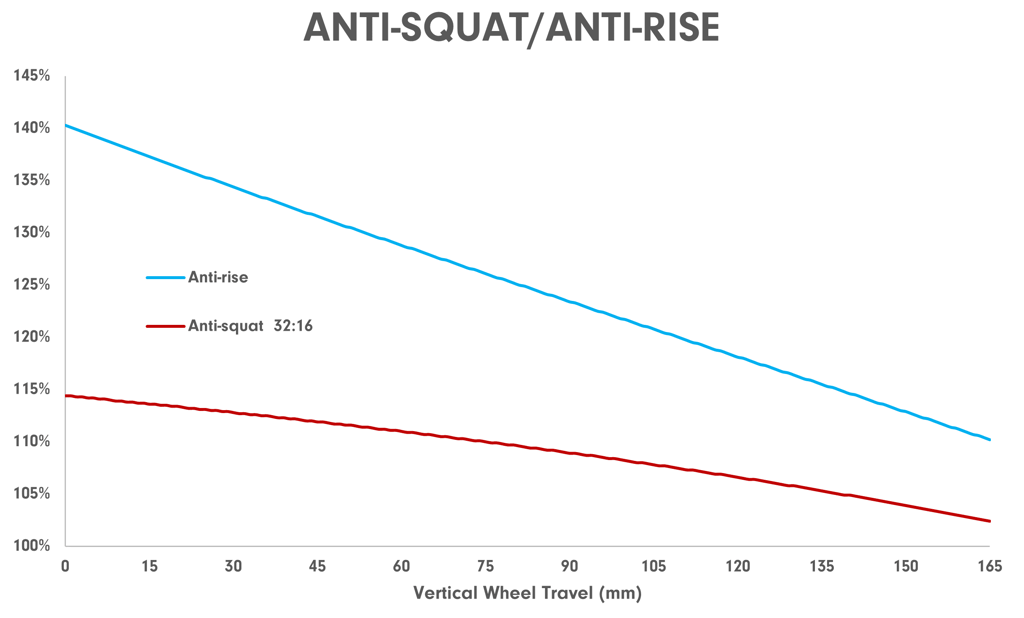

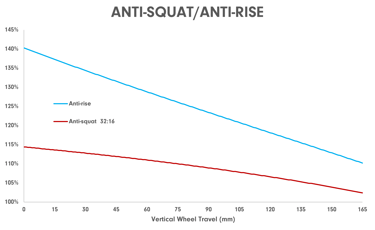

Deviate Claymore anit rise anti squat

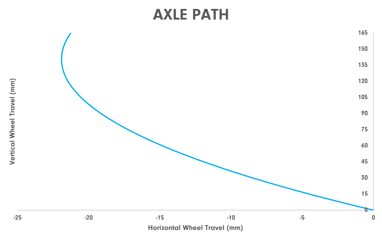

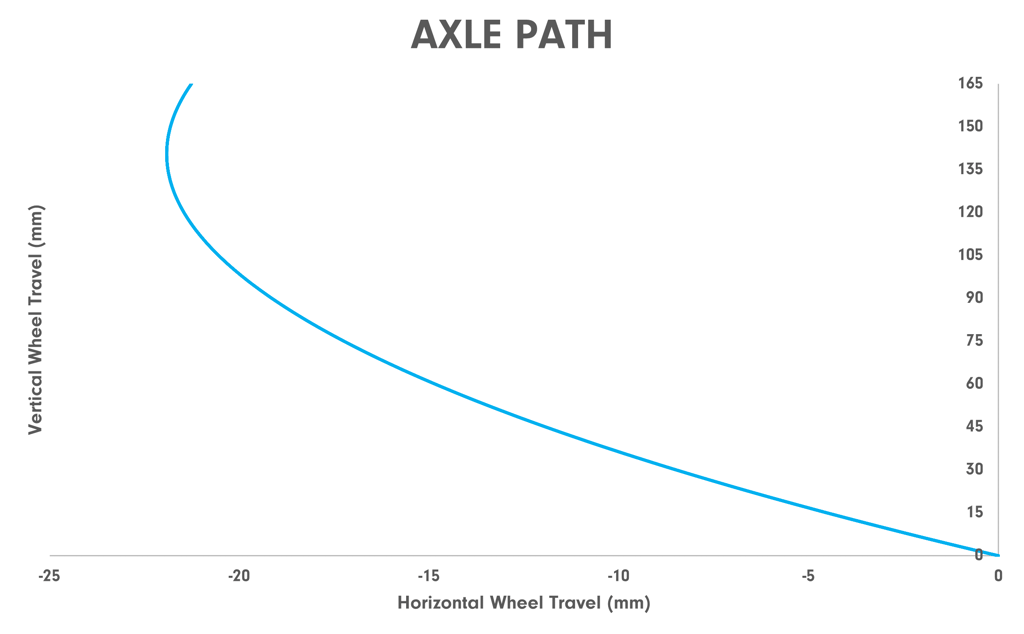

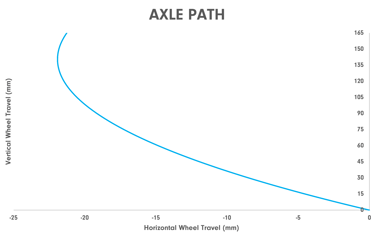

Deviate Claymore axle path

Spec Deviate Claymore

Rear Wheel: 29”, Boost: 148mm 12mm

Fork Compatibility: 29” 170 or 180mm with 44/42mm offset

Bottom Bracket: 73mm BSA Threaded

Headset: ZS44/28.6 upper and a ZS56/40 lower headset cup

Cranks: Minimum Q-factor of 168mm

Chainline: 52mm

Chain length: 126 links (widely available, no need to join chains)

Max Chainring Size: 36t

Shock Size: Metric 230x60mm

Shock Hardware: Front: 40*8mm | Rear: Eyelet bushing

Brake Mount: Post Mount 180mm

Seatpost Compatibility: Internal dropper routing with internal cable routing. 34.9mm

Seat Collar: 38.5mm

Mech hanger: Deviate Derailleur Hanger (Highlander/Claymore)
