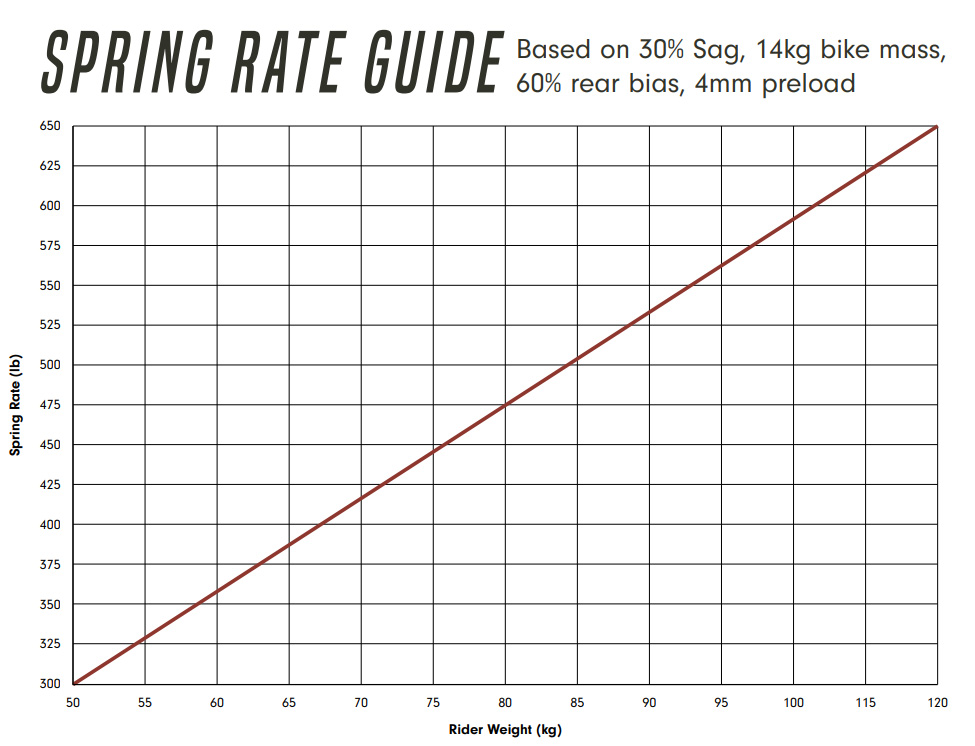

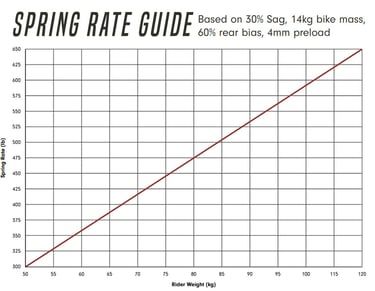

Fjærrate Deviate Highlander II
Fjærrate Deviate Highlander II

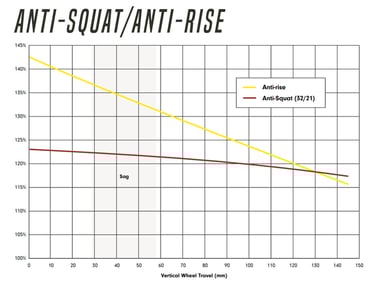

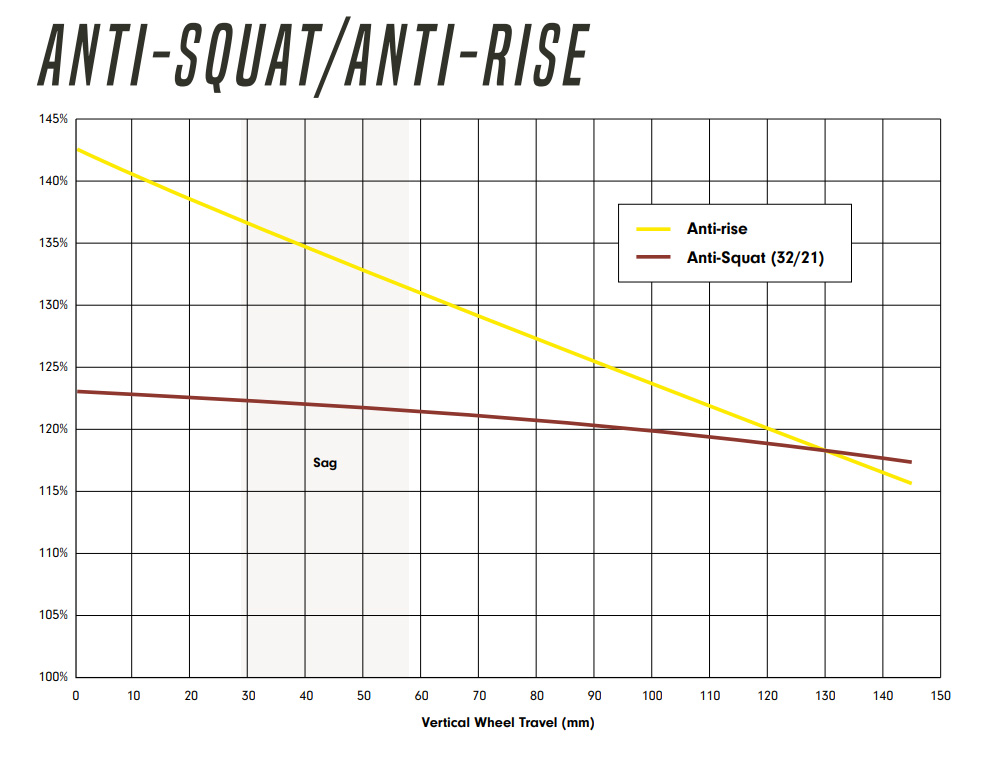

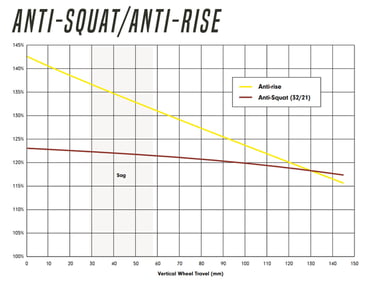

Anti squat anti rise Deviate Highlander II
Anti squat anti rise Deviate Highlander II

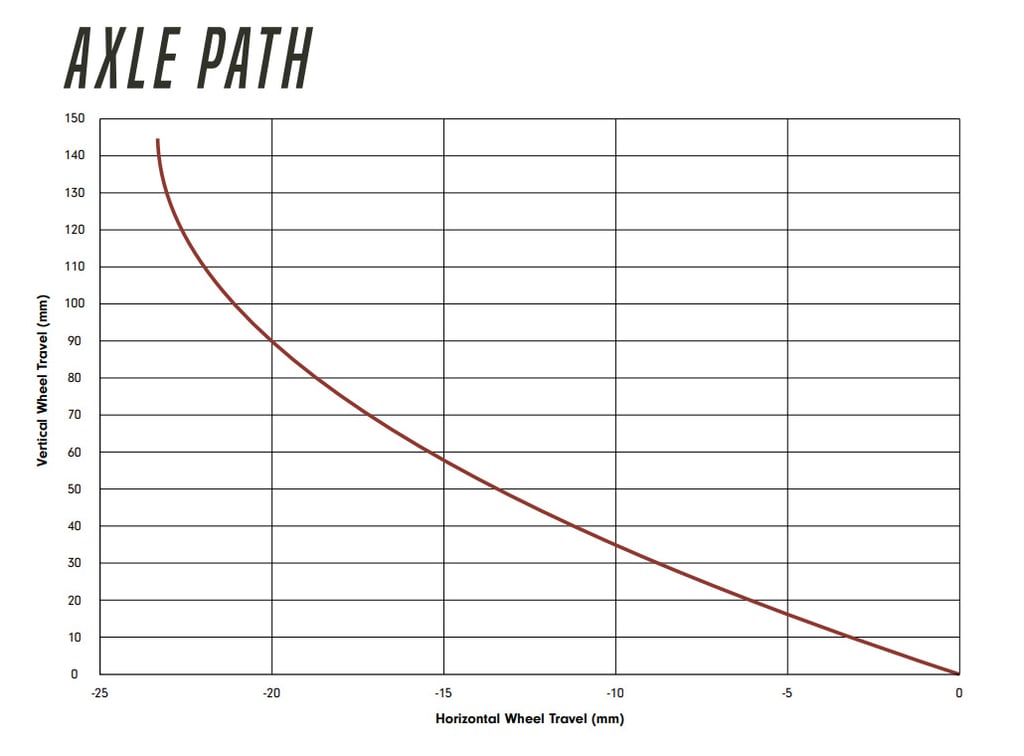

Axle path Deviate Highlander II
Axle path Deviate Highlander II

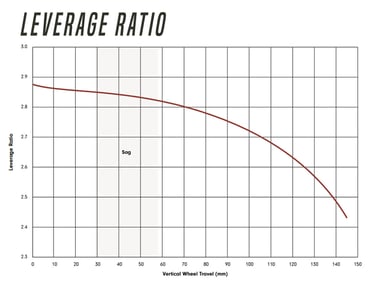

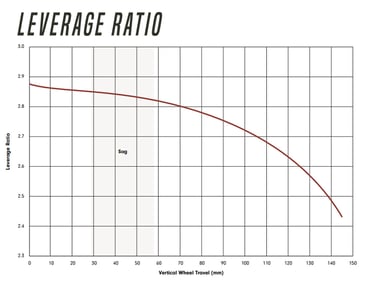

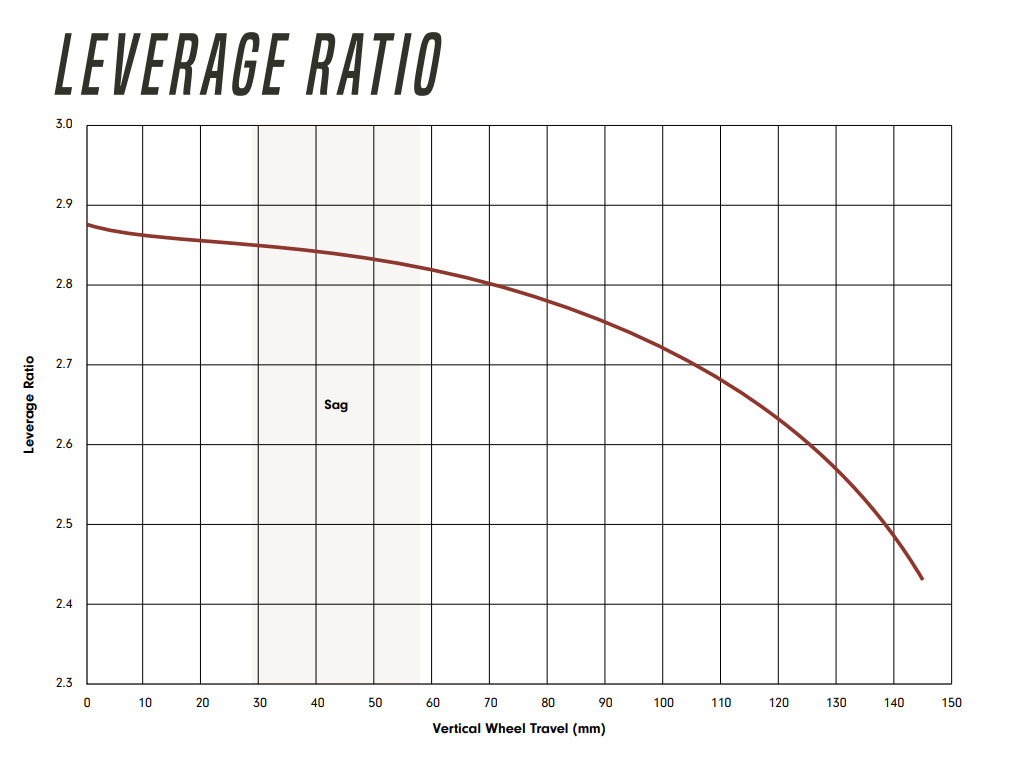

Leverage ratio Deviate Highlander II
Leverage ratio Deviate Highlander II

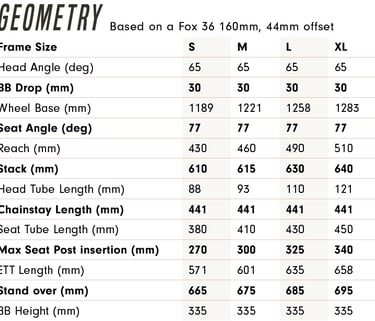

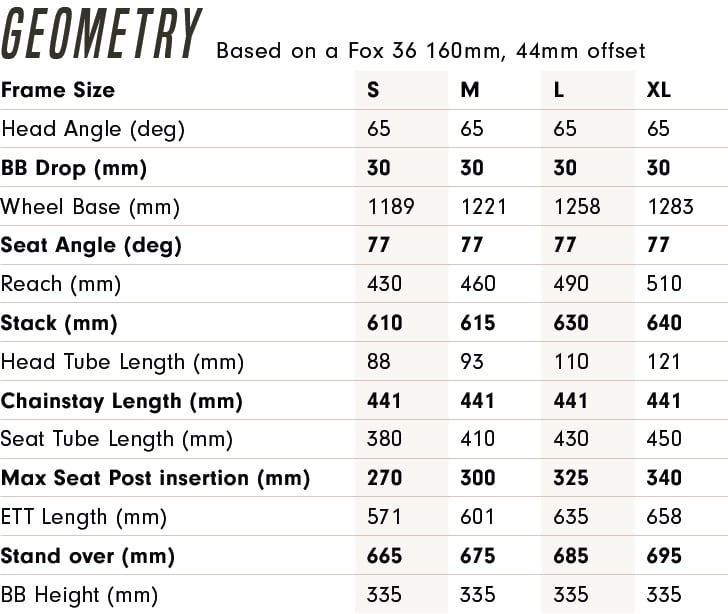

Spec Deviate Highlander II

Rear Wheel: 29”, Boost: 148mm * 12mm

Fork Compatibility: 29” 150-160mm with 44/42mm offset

Bottom Bracket: 73mm BSA Threaded

Headset: ZS44/28.6 upper and a ZS56/40 lower headset cup

Cranks: Minimum Q-factor of 168mm

Chainline: 52mm

Chain length: 126 links (widely available, no need to join chains)

Max Chainring Size: 36t

Shock Size: Metric 210*55mm

Shock Hardware: Front: 30*8mm | Rear: bushing

Brake Mount: Post Mount 180mm

Seatpost Compatibility: Internal dropper routing with internal cable routing. 31.6”, Max Insertion Depth: Medium:- 300mm, Large:- 330mm (that's a 200mm Reverb at full insertion even on the M)

Seat Collar: 34.9mm

Chain: 126 link chain - commonly available with no need to join chains.

Tyre clearance: 2.8”
